Though eHGVs have reached the market first, producers are nonetheless exploring FCEVs choices. Is there sufficient house for each applied sciences?
The problem of decarbonizing street freight and municipal autos is one entwined with financial penalties, entry to dependable infrastructure and the necessities of an unlimited array of functions that can’t be solved with a one-size-fits-all resolution. As impending deadlines for automobile decarbonization loom, all seven main European truck producers have launched electrical variations of current fashions. With current infrastructure and clear authorities assist in some nations, eHGVs have reached the market faster than hydrogen gas cell electrical automobile (FCEV) vans or hydrogen inner combustion engine (ICE) choices. Whereas truck producers are nonetheless exploring hydrogen powertrains, eHGVs are capable of supply zero-emission options instantly.
Mark Collins, E-Mobility and Physique Builder Product Supervisor at Volvo Group, underlined the problem of discovering an acceptable resolution for vans in comparison with different autos. “The place electrical passenger vehicles and most vans draw power from the batteries to predominantly energy the drivetrain, lots of lorries require the power to energy the auxiliary tools. Subsequently, the power throughput could possibly be important in relation to the mileage. A mixer or a crane automobile, for instance, could possibly be on web site drawing energy over a protracted time frame earlier than transferring.”
Regardless of hydrogen expertise being in its infancy in comparison with EVs, FAUN Zoeller has pushed forward with its FCEVs for municipal and regional distribution functions. Underneath the Enginius sub-brand, which is devoted to different fuels, the corporate provides Bluepower and Citypower fashions with FCEV powertrains.
Each fashions use Mercedes-Benz chassis, Bluepower borrows the Econic whereas Citypower has an Atego chassis. Bluepower has three 30kW gas cells, an 85kWh battery and storage for as much as 16.4kg of hydrogen fuel at 700bar. Utilizing a 4×2 chassis, a payload of as much as 12-tonne might be achieved with a spread of 250km. A 6×2 chassis provides the identical vary and payload as much as 18-tonne.
Powertrain packaging
No matter whether or not FCEV or BEV expertise would be the prevailing alternative sooner or later, each current challenges and important advantages, a few of that are shared throughout the gas varieties. In municipal and concrete environments, maneuverability is a crucial attribute to take care of. Because of this, producers are challenged with packaging bulkier powertrain elements into quick wheelbases.

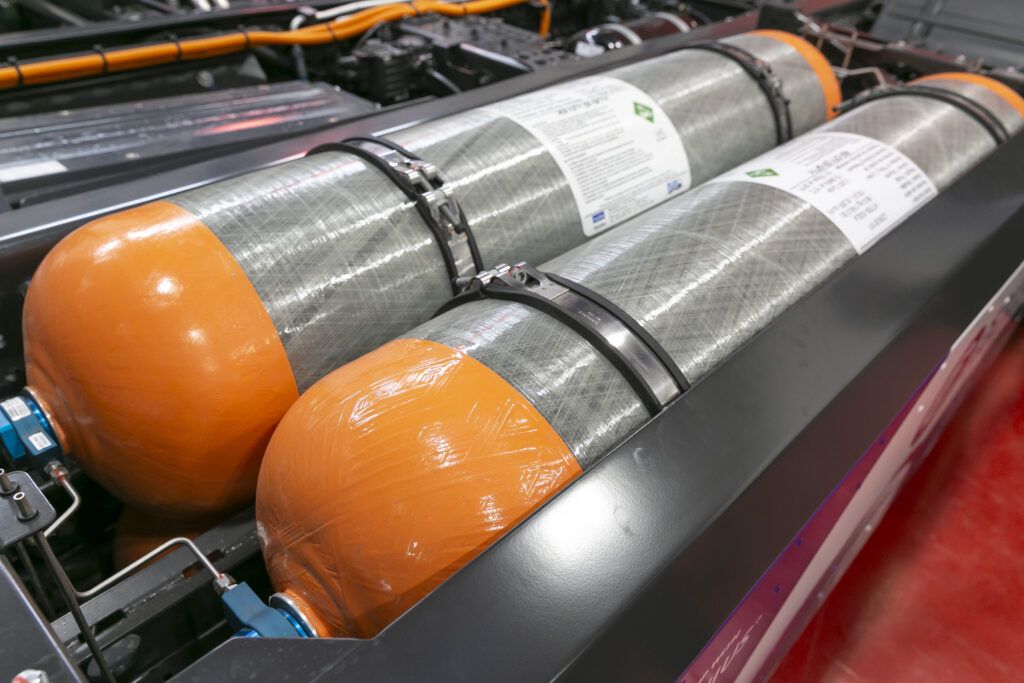

“We attempt to work inside the shortest wheelbase we will,” mentioned David Graham, Head of Engineering at FAUN Zoeller, “And sometimes use 3.9m wheelbases.” As an alternative of positioning hydrogen tanks between the cab and physique, FAUN Zoeller mounts them between the chassis rails to maintain total automobile size to a minimal. This configuration additionally offers flexibility for various our bodies to be added relying on the applying.
Subsequent to house restrictions are weight limits with producers juggling vary capabilities, payload capability and rules. “For lorries, the volumetric density of batteries is a very powerful attribute, because of constraints on automobile dimension,” mentioned Collins. “So, while batteries are being developed constantly, different elements are additionally being developed to unencumber house for the extra packs, akin to e-axles.”
Energy take-offs
Crucially, for the success of alternatively fueled vans that function auxiliary tools, akin to concrete mixers, cranes, skiploaders and refuse assortment, autos have to be fitted with the suitable energy take-off items. For vans that require excessive ranges of energy, like concrete mixers, Volvo makes use of an electro-mechanical PTO to attach with hydraulic techniques. “It is a motor that was chosen because of the truth that it may well function unbiased of the automobile’s driveline in order that it may well energy the hydraulic system for the mixer drum each when the automobile is stationary and on the transfer,” mentioned Collins. “In addition to this, the PTO may also be activated when the automobile is charging on AC or DC energy. That is extra versatile and energy-efficient than a gearbox PTO and can be utilized to energy many different functions akin to refuse collectors, tippers, cranes and many others.”
On the subject of effectivity, Collins sees enhancements might be achieved with electrical PTOs. “We will specify autos with a direct electrical PTO which might at the moment present as much as round 40kW of energy, very best for lower-power functions like refrigeration items, which require peak energy of round 15kW, however might not fairly be sufficient energy for an 8m3 cement drum through the loading/unloading section, which may require as much as round 50kW,” he mentioned. “Future enhancements in automobile expertise will enable for a extra highly effective direct electrical PTO for use sooner or later, which may remove the necessity for hydraulics, therefore scale back the variety of transferring elements and enhance effectivity and vary.”
Since FAUN Zoeller’s FCEVs are tailor-made to regional and municipal functions, the corporate suits electrical PTOs for the best effectivity. Graham additionally anticipates the electrical PTO would be the favored resolution transferring ahead.
Thermal administration
With an electro-mechanical PTO fitted, further cooling is required however elsewhere the cooling system in an electrical truck is pretty standard. “It consists of a closed circuit with three loops – the batteries, powertrain and cab heating – the place every loop has a distinct temperature management with unbiased coolant pumps,” mentioned Collins. “To attenuate cab heating losses, there’s further insulation and laminated glass on the facet home windows and the autos have a ready-to-run characteristic to carry the cab atmosphere and batteries as much as working temperature when nonetheless plugged in to the charger.”
The cooling system for FCEVs is barely extra complicated with a cooling unit for prime voltage tools, and first and secondary cooling techniques for every gas cell. “Roughly talking, the output of a gas cell is 50% energy, 50% warmth,” Graham mentioned, “Every gas cell has its personal radiator system and the auxiliary tools like motors and inverters have their very own cooling system as nicely.”
The gas cells use the non-conductive coolant glysantin. A FCEV’s cooling techniques are probably the most complicated a part of the powertrain, so common upkeep inspections deal with guaranteeing the techniques are working as they need to with the right coolant ranges.
Expertise to facilitate change
On this transitionary interval to different fuels, software program surrounding the automobile is equally as vital as software program controlling its features. To find out buyer energy utilization, FAUN Zoeller installs {hardware} on a buyer’s current automobile to assemble information about their typical routes. Utilizing an algorithm which considers elements akin to velocity, gas utilization, payload and driver habits, the corporate can calculate a buyer’s energy necessities.
“We’ve obtained hundreds of information experiences so we all know that municipal autos will usually do 60 to 70 miles a day and elevate 1,200 bins,” mentioned Graham. “These information loggers are a instrument that we will put onto buyer autos earlier than they purchase a automobile to make it possible for the automobile will give them what they want out of it.” As soon as autos are deployed, these information loggers act as diagnostic instruments to watch and determine any points, minimizing downtime.
At Volvo, simulation expertise is employed to work out the perfect automobile specification for a buyer’s wants. “Shifting to EVs the place vary and effectivity is much more in-focus has supplied a platform to overview and optimize options by means of pump choice to motor velocity managed through the CAN,” mentioned Collins. “This info is at all times fed by means of the engineering crew and can be utilized to enter information into our in-house ‘Electrical Vary Simulator’ which might precisely programme routes, together with varied elements akin to PTO utilization, ambient outdoors temperature, street topography, automobile payload, regeneration, all the way in which right down to the extent of element of which tire rolling resistance class is specified to offer an output to find out whether or not the routes are potential or not, and in the end what number of batteries are required.”
Sensible suitability for any software extends past merely finishing the duty itself. For producers, a lot of the logistical preparations for charging or refueling are out of their management. Therefore, route planning and exploring the viability of those autos grow to be a extra vital issue.
The primary variations between eHGVs and FCEVs at this stage is value and refueling instances. Whereas a hydrogen automobile can fill its tanks in beneath 10 minutes, electrical autos depend on super-fast charging or in a single day stints to organize for the following workday. Whereas eHGV deployment is accelerating extra rapidly, there’s more likely to be a necessity for each applied sciences in addition to different alternate options sooner or later.
“There are functions for gas cell autos and functions for electrical autos,” mentioned Graham. “I feel on the subject of refuse assortment autos, it’s in all probability going to be 70% electrical and 30% gas cell in 10 years’ time.”
Hydrogen coaching facility
The deployment of any alternatively fueled automobile depends on extra than simply the availability of the automobile itself. Entry to fueling, applicable subsidies or funding choices and a community of technicians to take care of the automobile as soon as it’s in operation are key elements. South and Metropolis Faculty Birmingham (SCCB), in collaboration with FAUN Zoeller UK has opened a brand new hydrogen coaching facility to upskill current technicians and new mechanics in hydrogen expertise.

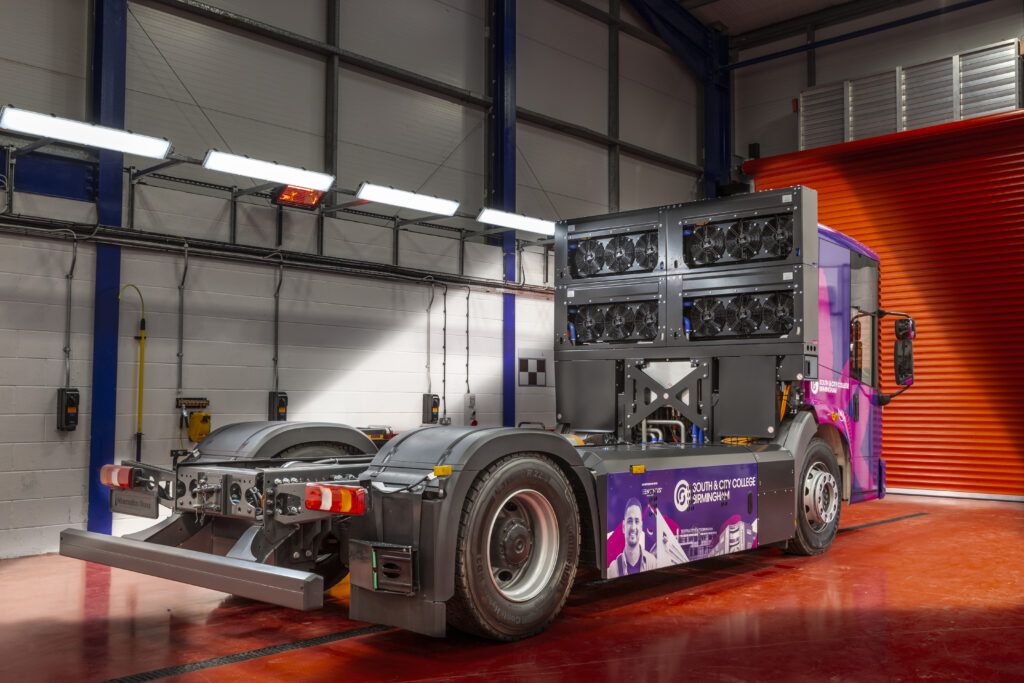

Following a £1.5 million funding, SCCB unveiled a brand new 450m² ATEX-compliant workshop devoted to engaged on hydrogen autos. Alongside passenger vehicles which college students might be in a position work on, the school bought an Enginius Bluepower FCEV. The power, which is regarded as the primary of its form in Europe, will ship Institute of the Motor Trade (IMI) Degree 1 hydrogen automobile consciousness, IMI Degree 2 hydrogen automobile routine upkeep actions and IMI Degree 3 hydrogen FCEV system restore and alternative programs. Increased stage programs are additionally deliberate together with the IMI Degree 4 award within the analysis, testing and restore of electrical/hybrid autos and elements with hydrogen consciousness.
Simon Hyde, CEO at FAUN Zoeller UK mentioned, “The talk round different automobile fuels has largely centered on electrical energy and hydrogen-sceptics have cited funding, fueling, efficiency and abilities as boundaries to adoption.
“We consider that none of those are insurmountable. With the launch of this coaching facility and the dedication that SCCB has demonstrated, the prevailing and future workforce will profit from probably the most applicable coaching to allow them to successfully service, preserve and perform diagnostics on hydrogen-powered municipal autos.”
SCCB plans to open up its hydrogen coaching facility to college students throughout its automotive programs to organize them for jobs sooner or later that will contain sustaining hydrogen autos. FAUN Zoeller plans to coach new UK-based technicians by means of the school because it expands its community of cellular engineers.
Different decarbonization choices
Whereas a lot of the main focus rests on zero-emission options which can be anticipated to exchange diesel vans, some truck producers are exploring interim options to decarbonize fleets within the short-term. In exhausting to decarbonize sectors like development, fleet operators are more likely to want different gas options in situations the place infrastructure and dealing patterns are troublesome to adapt for zero-emission powertrains.
“Zero-emission battery electrical autos are only one expertise which might present advantages from an environmental perspective,” mentioned Collins. “There are a selection of different applied sciences and fuel-types which may also be utilized in completely different segments. For instance, drop-in fuels that come from a renewable feedstock can exchange EN590 diesel at present which have a useful well-to-wheel CO2e saving.
“Alongside this, gas-powered autos that may run on biomethane can present each CO2e financial savings on the tailpipe (tank to wheel) and well-to-wheel, once more, when utilizing a feedstock from a renewable supply. These are options that may be adopted to decarbonize transport at present alongside battery electrical autos.”
These options require comparatively minimal value funding from operators and producers. Adapting current tools or discovering fuels that can be utilized with no modifications to current tools is probably the most value efficient technique to influence CO2 emissions earlier than the value of EVs and FCEVs comes down.
